LabRecon ver 3.1416 released for Windows and Mac OS X !

LabRecon allows a student, educator, hobbiest, or engineer to rapidly and inexpensively create graphical interfaces for data acquisition, control, robotics, and simulation.

The software is free to use for simulation & sensor selection with sample projects for physics, dynamics, mathematics, & engineering.

LabRecon chips & hardware can be purchased to provide a physical interface between the software and sensors and control devices.

No programming knowledge needed
Intuitive drag/drop and wiring methods
Mathematical and logic functions
"Measurement Wizard" with built-in database of over 500 sensors
Sensor interface circuit design
Configurable display objects
Web page server for data view & control
TCP Interface for C++, Java, Python, Javascript, VB, ...

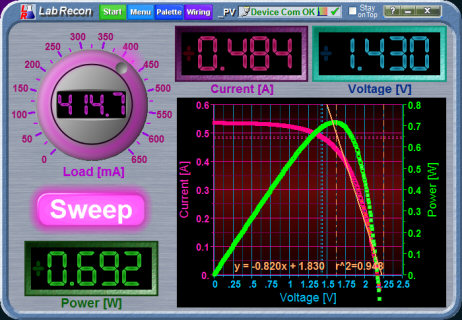

Project created to monitor a PV solar cell

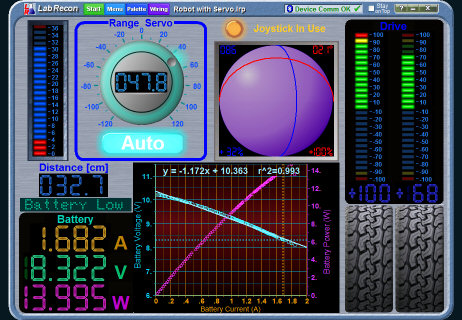

Project created for robot control

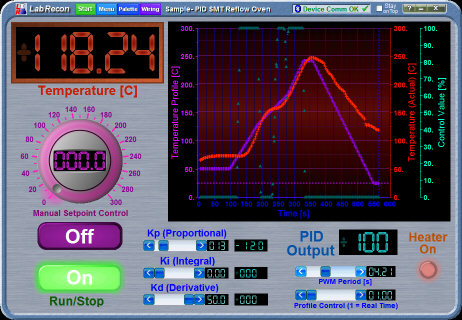

Project created for PID SMT Reflow control

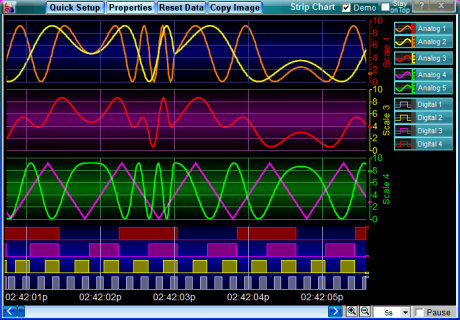

Strip chart showing analog and digital traces

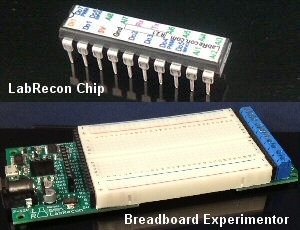

The LabRecon chip is software configurable for combinations of these pin functions:
  8 analog inputs,
  4 PWM outputs (2 Directional),
  4 servo outputs,
  Outputs for 2 Stepper Motors,
  7 On/Off outputs,
  Inputs for 1 Quadrature Encoder,
  2 count/frequency inputs,
  I2C for 24-bit ADCs, 16-bit DACs.

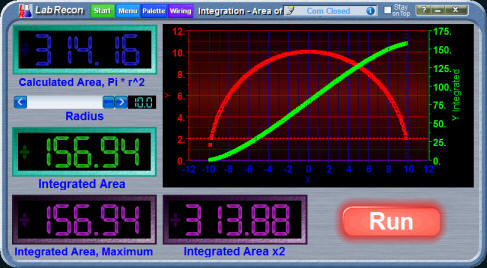

Simulation created to demonstrate integration of circle area

LabRecon serves as a free educational tool, allowing teachers and students to create simulations for demonstration and analysis.

One can open any of the 50 included example projects or create new ones.

  Calculus,
  Differential Equations,
  Special/General Relativity,
  System Dynamics,
  PID Control Dynamics,
  Circuit Models,
  Curvefitting,
  Statistics,
  Power Efficiency.
