MiniDAQ
Future product

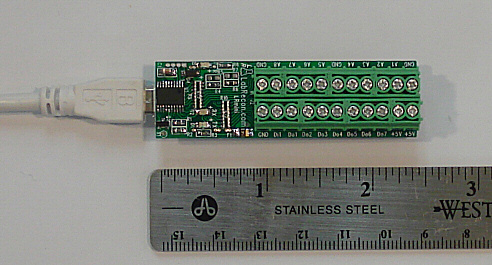

The LabRecon MiniDAQ, measuring just 2.45" x 0.72", provides the functionality of the LabRecon chip with the convenience of a USB connection and screw terminals.

The LabRecon MiniDAQ is software configurable for combinations of these I/O functions:
  8 analog inputs,
  4 PWM outputs (2 Directional),
  4 servo outputs,
  Outputs for 2 Stepper Motors,
  7 On/Off outputs,
  Inputs for 1 Quadrature Encoder,
  2 count/frequency inputs.

The MiniDAQ datasheet can be opened below: LabRecon - MiniDAQ Datasheet (rev1.0).
