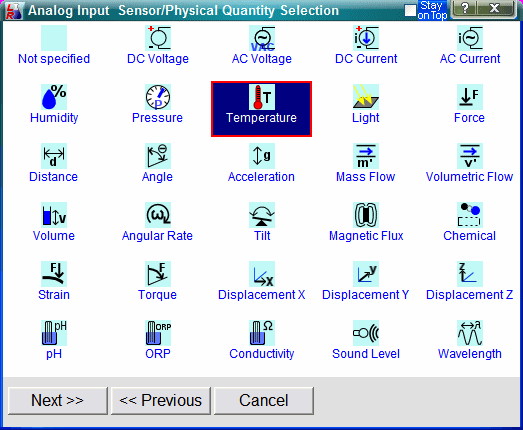

You can use the Measurement Wizard to select from a list of over 500 commercially
available sensors to have LabRecon present a conditioning circuit and
automatically configure scaling parameters.

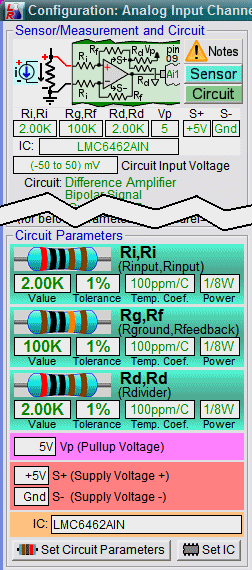

Below is a resultant circuit for selecting a bidirectional current measurement.
You can quickly build the circuit from the shown schematic and component values,
which also shows the color bands of the resistors.
Clicking on the Sensor or Circuit Notes buttons will open information on
the sensor type or circuit.

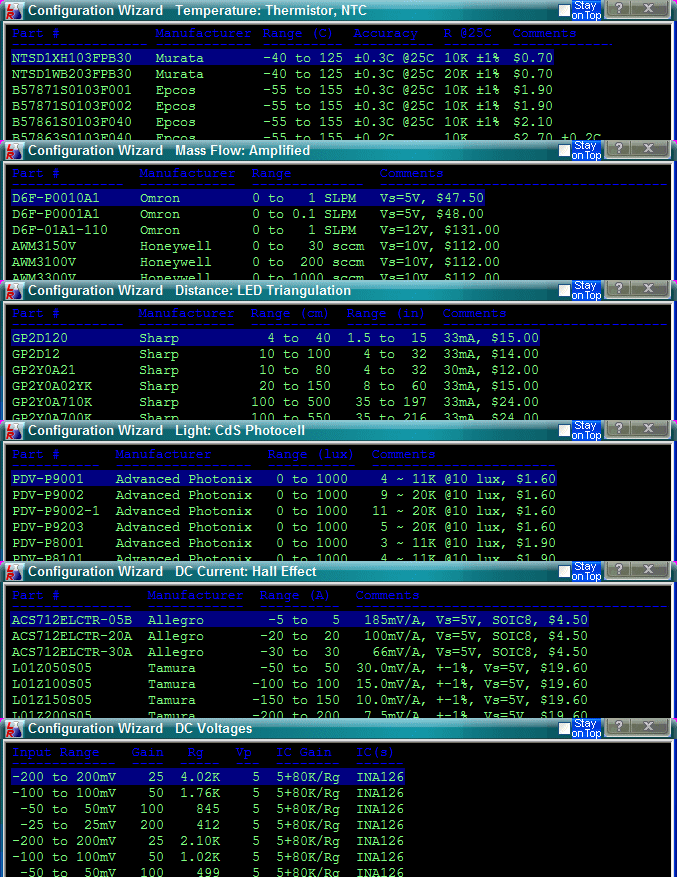

A few partial lists are shown below. There are over 500 sensors in total and prices
shown approximate those of common distributors.
|
