On the right a breadboard was built with a LabRecon Chip and additional
parts to measure 8 variables of a solar(photovoltaic) system.

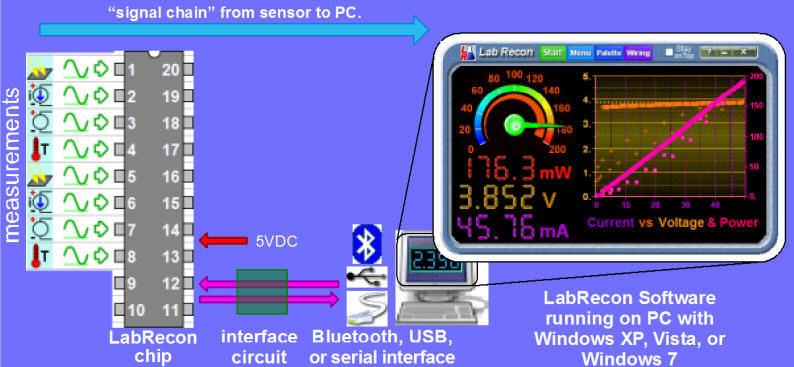

Below, a diagram shows the signal chain from the sensors to the computer
running the LabRecon software to display the variables.
You can quickly implement these measurements using the software's
Measurement Wizard,
which presents lists of commercially available sensors and interface circuits.
The paper
LabRecon_Photovoltaics.pdf
details an application.
|
