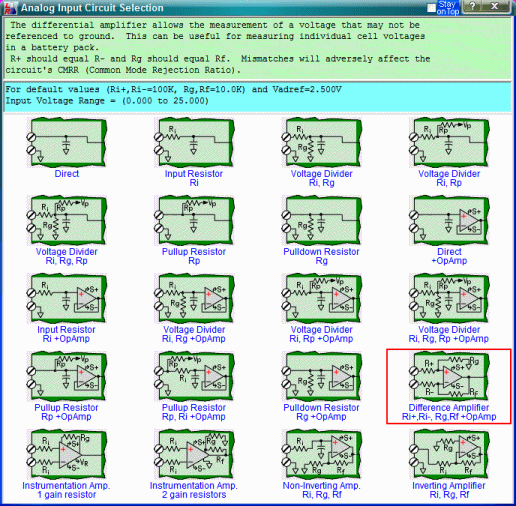

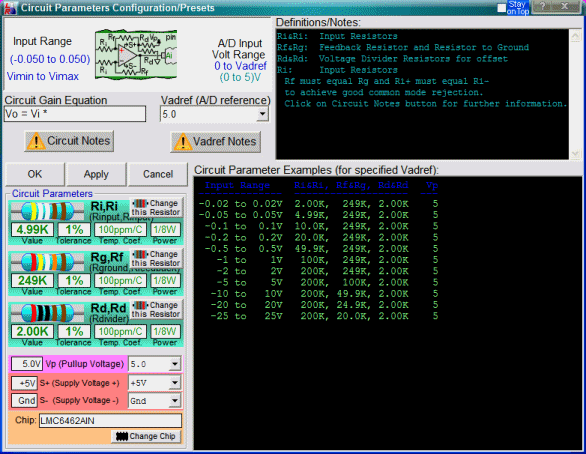

With the configuration screens for analog inputs, you can choose a circuit
and a desired measurement range and LabRecon will calculate the component values.
LabRecon will display the resistor values and images with the proper color bands.

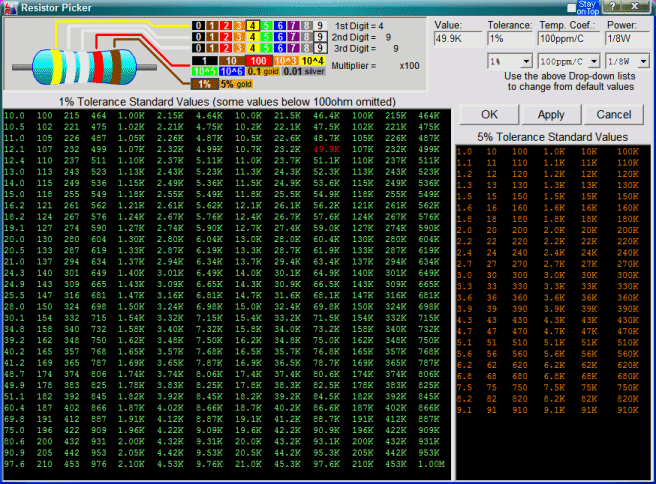

Alternatively, you can open the Resistor Picker screen (shown below) to choose from
standard values of 1% and 5% resistors.
|
